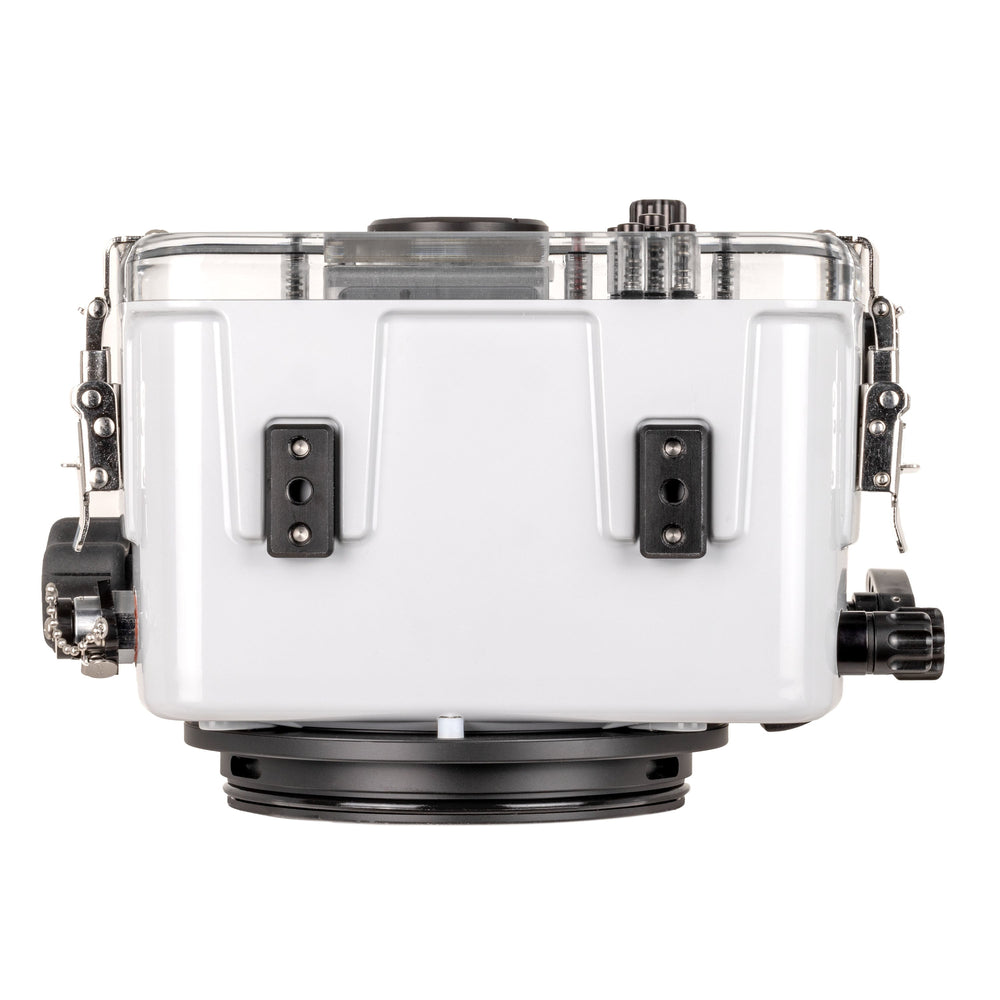

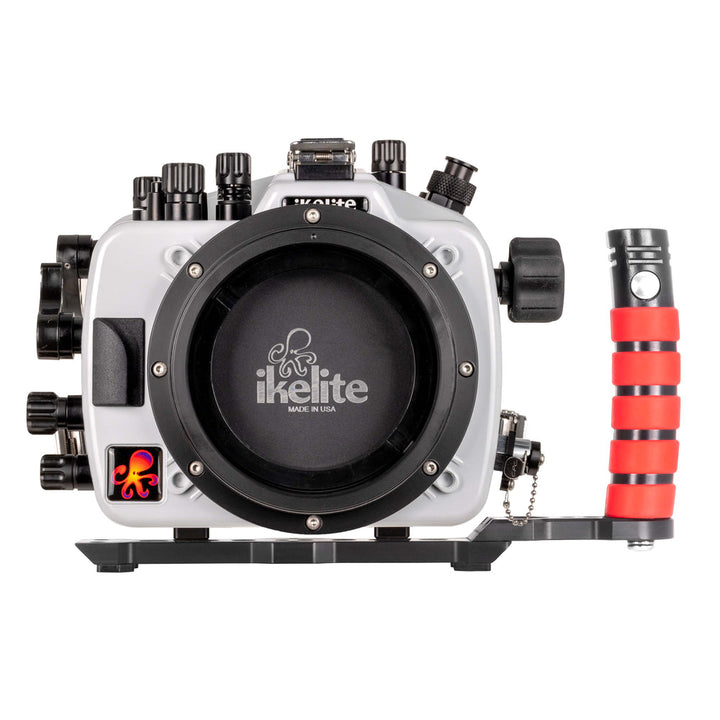

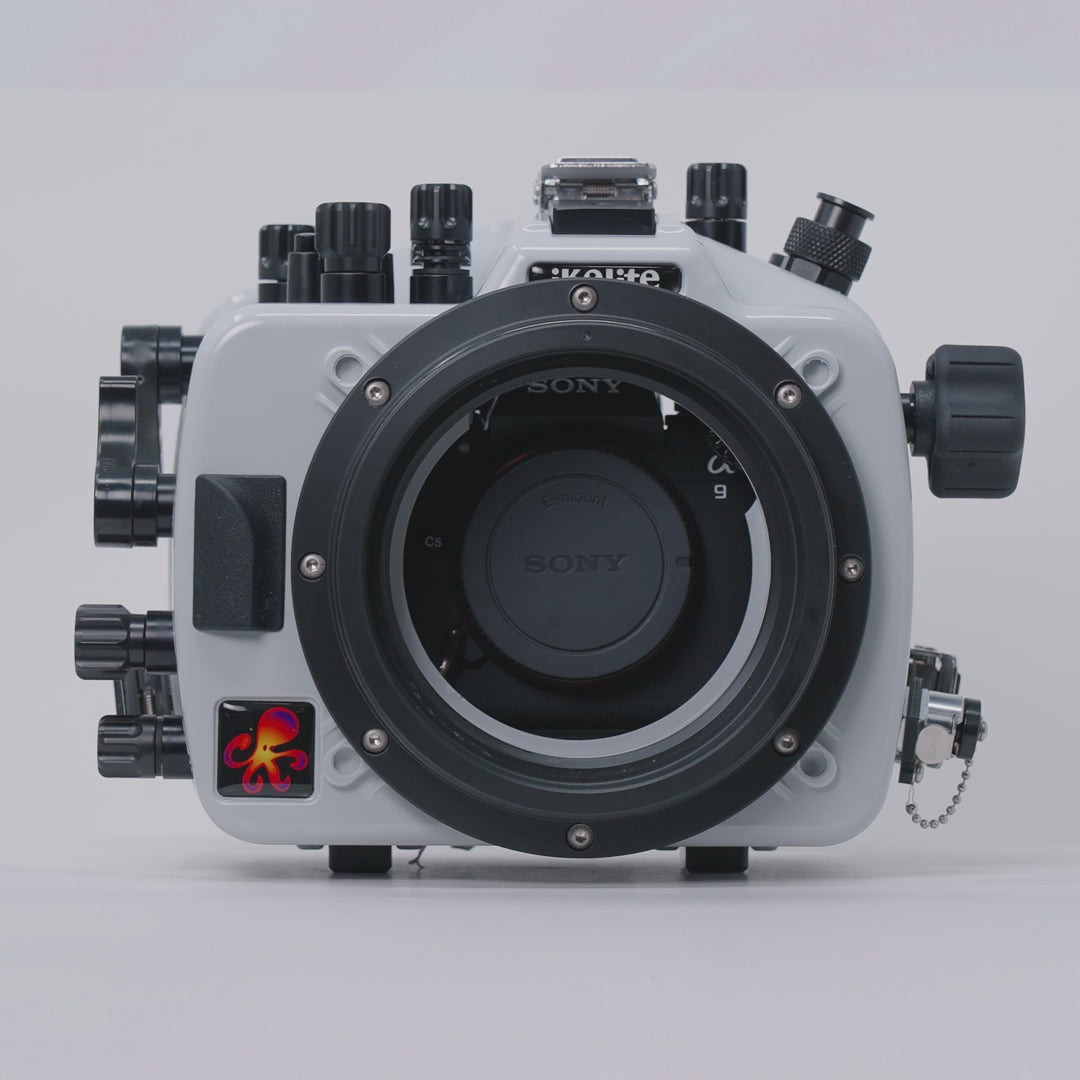

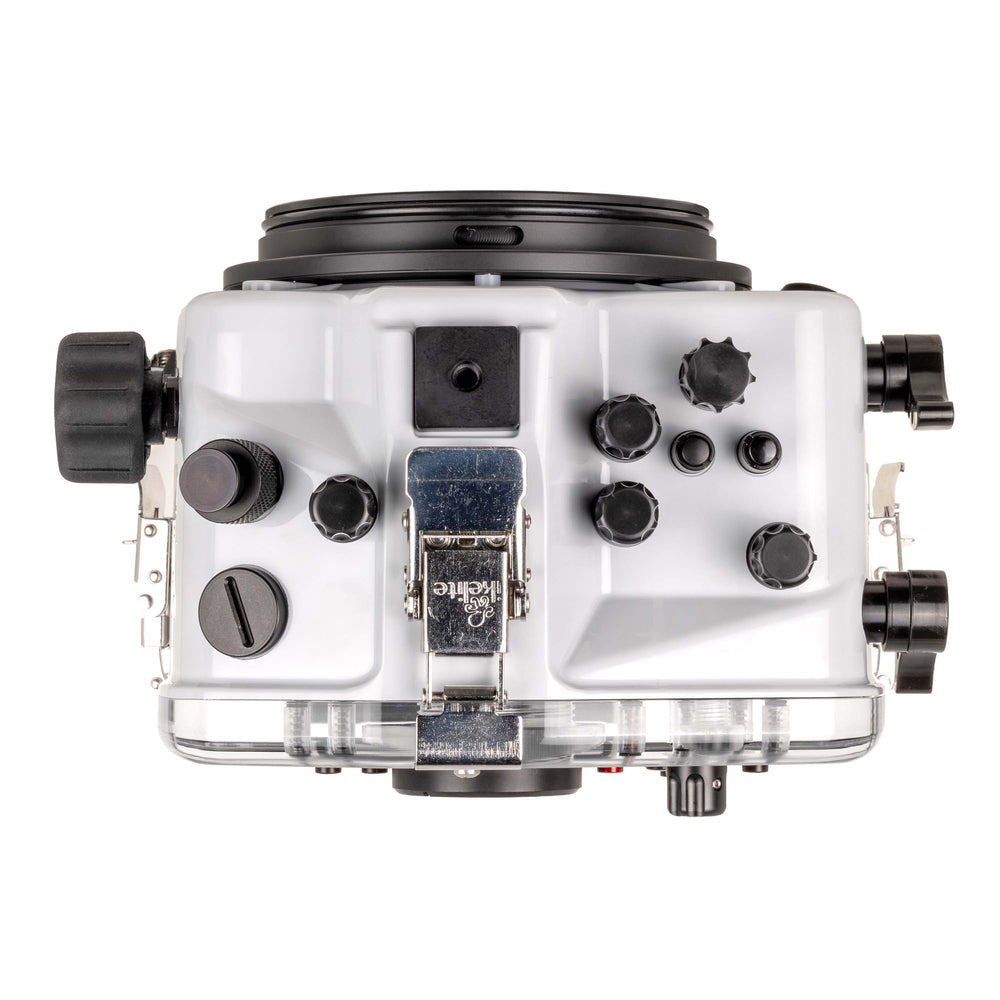

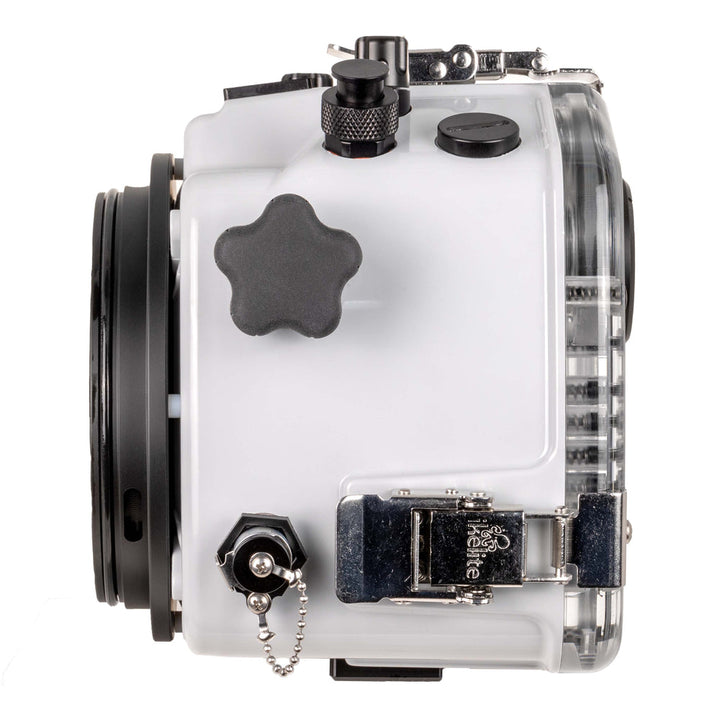

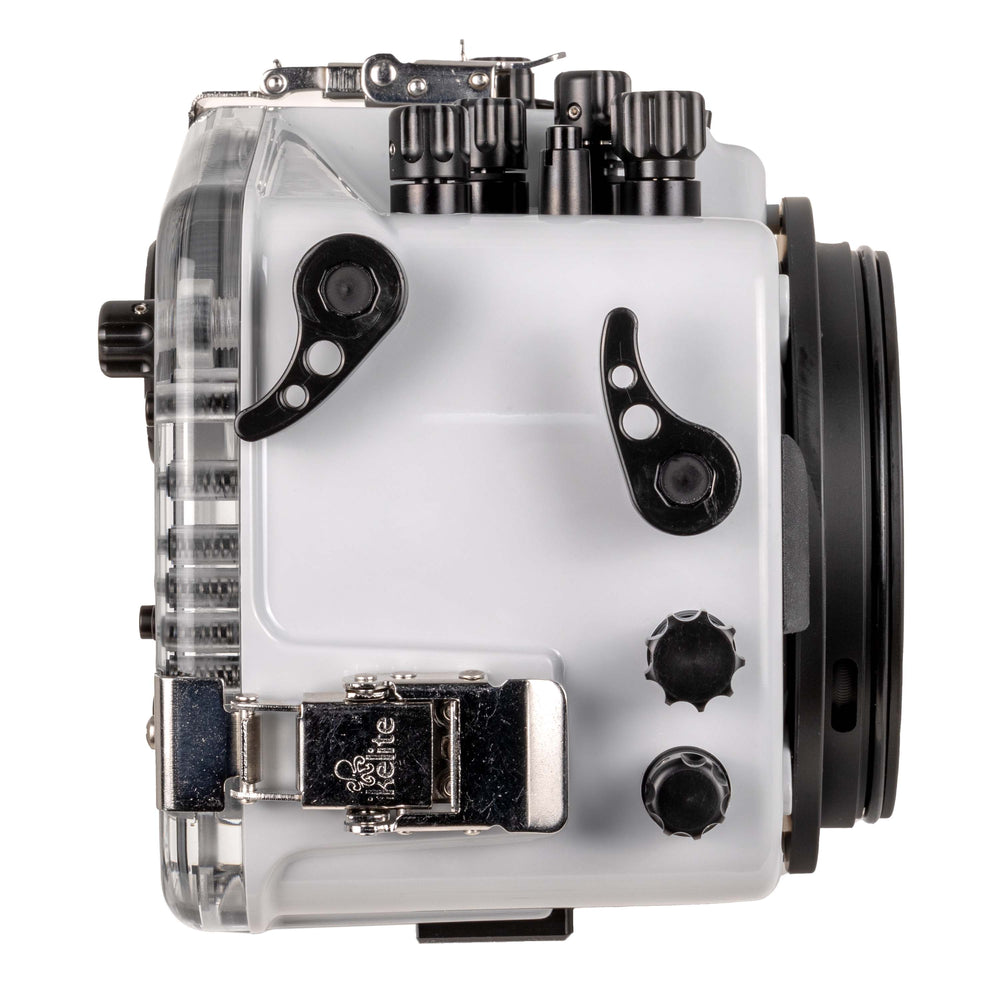

200DL Underwater Housing for Sony a9 III Mirrorless Digital Cameras
Product # 71482 - Housing and Base with Left-Hand Quick Release Handle
Product # 71482-DLX - Deluxe Housing includes: Tray with Dual Handles, Trigger Extensions, Vacuum Pump, USB-C Charging & Data Transfer Bulkhead and a set of spare O-Rings.
About the Deluxe Version
We've set up the Deluxe 200DL Underwater Housing for Sony a9 III exactly the way we would use it with Dual Tray with Dual Handles, Trigger Extensions, Vacuum Pump, USB-C Charging & Data Transfer Bulkhead, and a set of spare O-Rings.
This is a full featured and durable waterproof housing for Sony a9 III full-frame mirrorless digital cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.
The housing provides full creative control over the camera. Our custom ABS-PC blend is lighter than aluminum yet strong enough for almost anything you want to throw at it.
The included Vacuum Pump with Gauge allows you to check for leaks prior to entering the water.
The first-of-its-kind USB-C Charging & Data Transfer Bulkhead allows you to offload photos and top off the battery without removing your camera and lens from the housing.
About the Housing
A full featured and durable waterproof housing for Sony Alpha a9 III full frame mirrorless digital cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.
LENS PORT REQUIRED (Sold Separately)
A compatible lens port is required for waterproof operation (sold separately). Choose the correct port components on the lens you will be shooting.
View the DL Port Chart
Sony makes global shutter available on a consumer mirrorless for the first time
No other manufacturer makes professional functionality so accessible. Our housings are designed from the ground up to provide full camera control and connection for external strobe lighting out of the box. Advanced features including TTL lighting exposure and enhanced magnifying viewfinders are available as needed.
Our DL-series lens ports are optimized to be the lightest on the market with superb image quality. The materials chosen for our housings and lens ports are chosen to maximize durability and corrosion resistance while minimizing travel weight and cost.
| Controls |
Controls are provided for all camera functions except: Diopter adjustment; Joystick up/down/left/right (Joystick can be depressed), Control wheel; Control wheel functions may be accessed using the Front and Rear Dials |
| Strobe Connector |
Ikelite Bulkhead with Manual Hotshoe
|
| Port Mount |
DL (Dry Lock) |
| Accessory Port |
M16 Thread |
| Depth Rating |
200 feet (60 meters) |
| Weight |
5.35 lb |
| Dimensions |
9 x 7.25 x 6" (229 x 184 x 152 mm) Not including handle |
| Rear O-ring |
0132.59 |
| Front O-ring |
0132.45 |
PRE-DIVE CHECKS

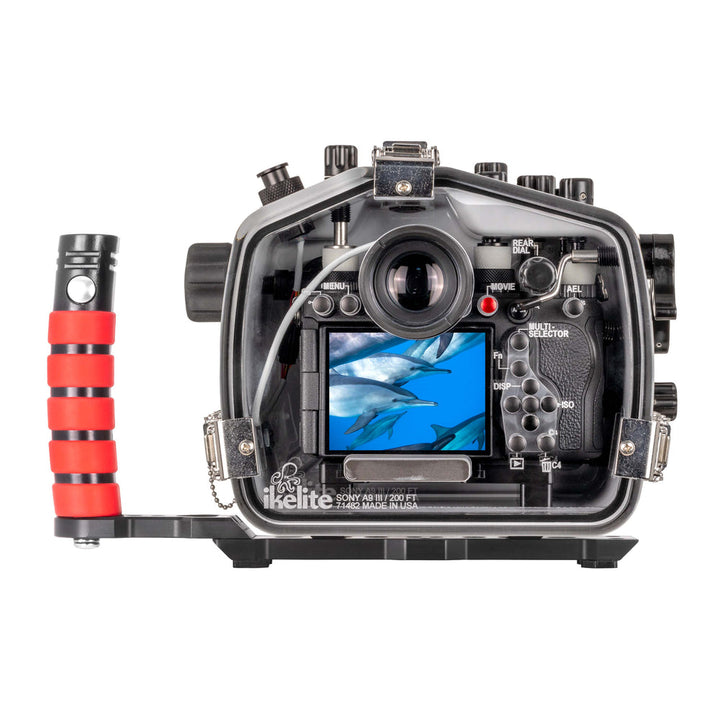

There is no greater assurance than being able to see your camera and o-ring seal through the back of the housing. Our signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. Once the housing is closed you can see the o-ring form a solid, waterproof seal.
We recommend adding the optional Vacuum Kit with Gauge # 47011 to pull a vacuum on the housing and check for leaks prior to entering the water.
CONSTRUCTION
Our specially formulated ABS-PC blend housing is highly durable yet significantly lighter than aluminium. The light colour keeps your camera cooler when shooting in warm, sunny environments.
LENS SUPPORT
Ikelite lens ports are the lightest on the market, yet robust and capable of standing up to rough surf.
We support a wide variety of lenses. Most popular zoom lenses and select focus rings can be engaged using simple gearing that puts adjustment right at your fingertips. Zoom and focus gears differ depending on which lens you are using.
Lens ports and zoom gears sold separately. Refer to the appropriate port chart for compatibility information.
WI-FI TRANSFER
Use the camera's built-in Wi-Fi feature to download photos to another device without removing the camera from the housing. The Wi-Fi feature is only usable above water within close proximity to the connected device.
COMPATIBILITY
Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.
Differences in lens and control placement prevent other camera models from being used in or adapted to this housing. We are not aware of any other models which may be used in or adapted to this housing.
Instruction Manual
IN THE BOX
- Housing Rear O-ring # 0132.59 (installed)
- Front O-ring # 0132.45 (installed)
- Zoom Gear Retainer # 75900 (installed)
- Port Hole Cover # 0200.92 (installed)
- Waterproof Bulkhead Cap # 9104.7 (installed)
- Base with Left-Hand Quick Release Handle # 4077.67 (installed)
- Tool for Zoom Gear Retainer # 0945.06
- .050" Hex Key # 0945.11
- 1/16" Hex Key # 0945.16
- Silicone Lubricant 1cc Tube
Optional Accessories
Spare Rear O-Ring # 0132.59 Carry a back-up in case original seal becomes damaged.
Spare Front O-Ring # 0132.45 Carry a back-up in case original seal becomes damaged.
Vacuum Pump with Gauge # 47011 Pressurize the housing to check for leaks prior to entering the water.
Right-Hand Quick Release Handle # 4077.02 Makes a double tray for easier handling and a second attachment point for strobes or lights.
Trigger Extension # 4077.95 Recommended if using the Right-Hand Quick Release Handle. Brings shutter or AF-ON lever out to handle for more comfortable use (requires 2 to extend both controls).
USB Charging & Data Transfer Bulkhead # 46007 Allows you to attach a high quality (3.0 or above) USB-C cable [not included] from the outside of your housing to charge the camera and offload photos and video to your laptop.
Cable Top Handle Grip # 4080.09 The most convenient way to carry the system when shooting with two strobe arms.
Adding an external strobe or video light enhances your photos' color and sharpness underwater. If you will be shooting below 45 ft (13m) or in an indoor pool, your photos will be predominantly blue-green without an artificial light source. Read more about strobe options
