200DL Underwater Housing for Sony a1 II Mirrorless Digital Camera

Product # 71483- Housing andBase with Left-Hand Quick Release Handle

Product # 71483-DLX- Deluxe Housing includes: Tray with Dual Handles, Trigger Extensions, Vacuum Pump, USB-C Charging & Data Transfer Bulkhead and a set of spare O-Rings.

About the Deluxe Version

We've set up the Deluxe 200DL Underwater Housing for Sony a1 II exactly the way we would use it with Dual Tray with Dual Handles, Trigger Extensions, Vacuum Pump, USB-C Charging & Data Transfer Bulkhead, and a set of spare O-Rings.

The included Vacuum Pump with Gauge allows you to check for leaks prior to entering the water.

The first-of-its-kind USB-C Charging & Data Transfer Bulkhead allows you to offload photos and top off the battery without removing your camera and lens from the housing.

About the Housing

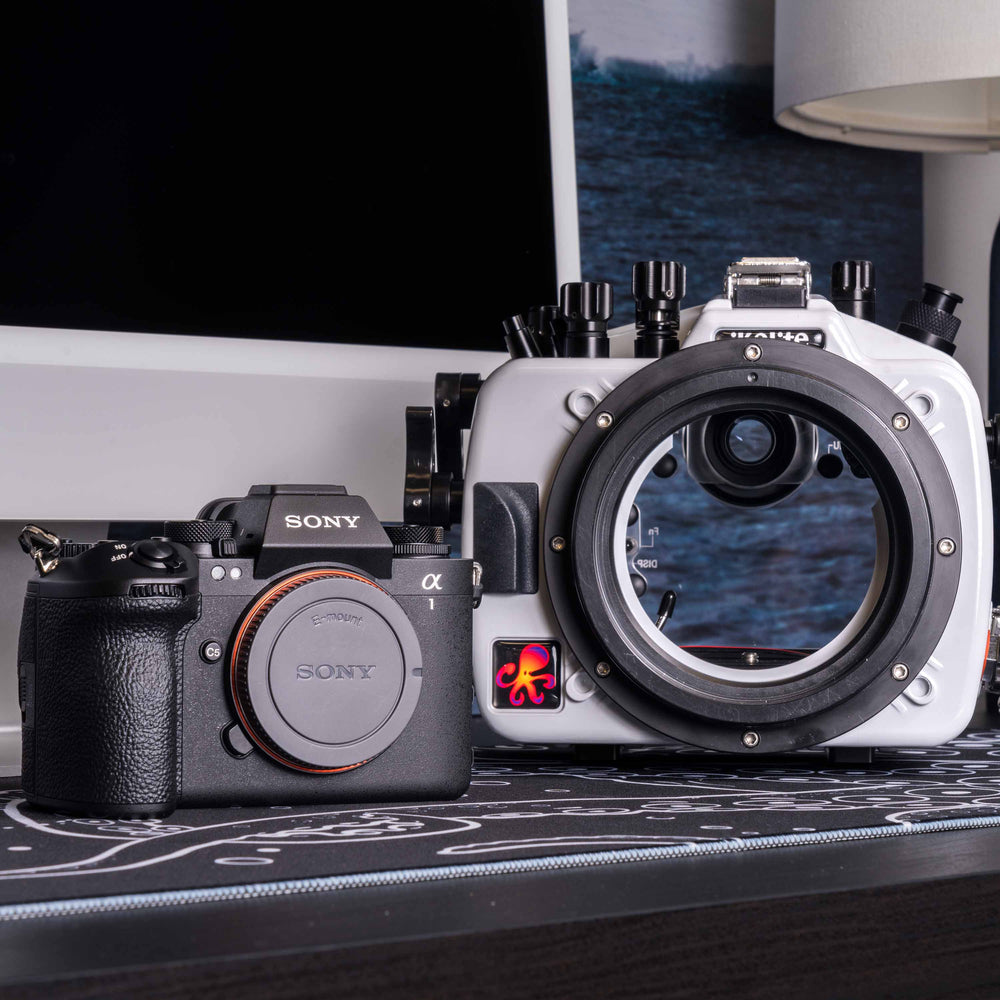

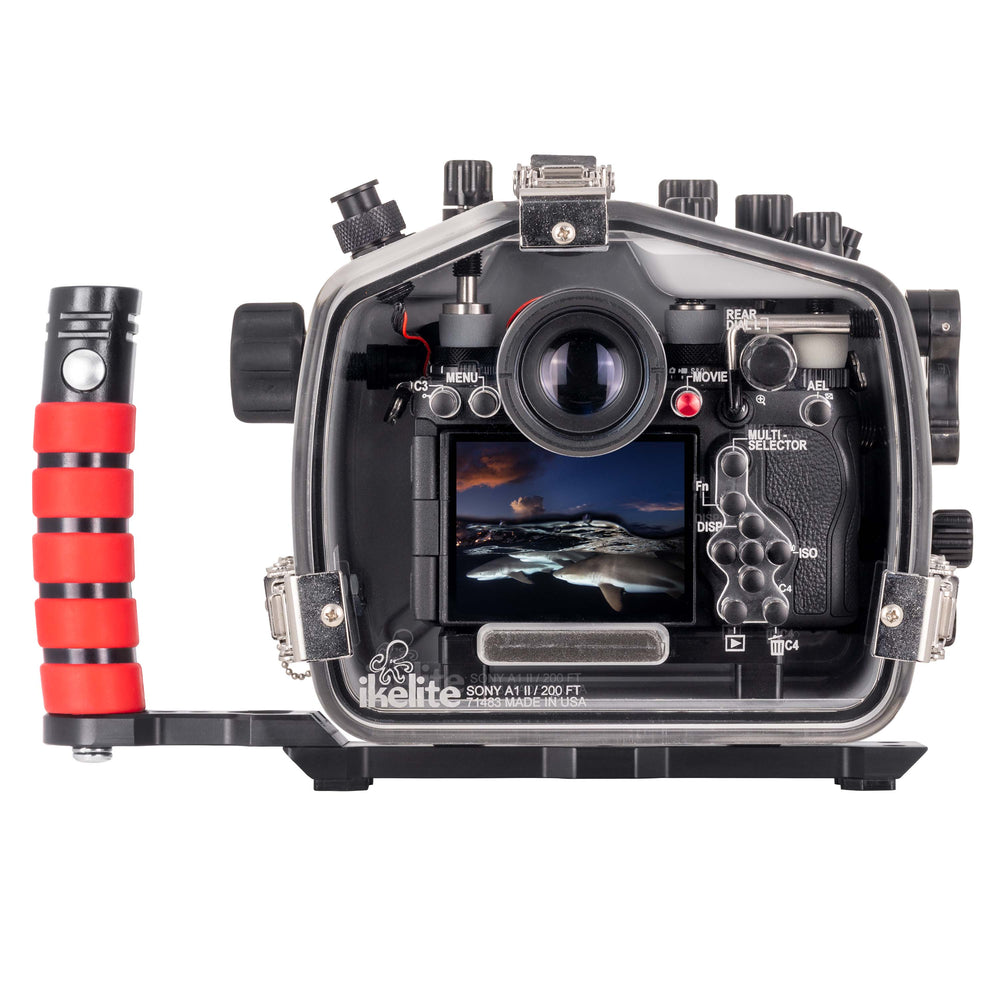

A full featured and durable waterproof housing for the Sony Alpha 1 Mark II full frame mirrorless digital cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water. The Ikelite system can be expanded for any shooting needs including the addition of an optional M24 accessory port for an HDMI 2.0 external monitor.

The housing provides full creative control over the camera. Our custom ABS-PC blend is lighter than aluminum yet strong enough for almost anything you want to throw at it.

LENS PORT REQUIRED (Sold Separately)

A compatible lens port is required for waterproof operation (sold separately). Choose the correct port components on the lens you will be shooting.

View the DL Port Chart

Take full control over this powerful Sony full frame cameras in one lightweight and durable underwater housing

No other manufacturer makes professional functionality so accessible. Our housings are designed from the ground up to provide full camera control and connection for external strobe lighting out of the box. Advanced features including TTL lighting exposure and enhanced magnifying viewfinders are available as needed.

Our DL-series lens ports are optimized to be the lightest on the market with superb image quality. The materials chosen for our housings and lens ports are chosen to maximize durability and corrosion resistance while minimizing travel weight and cost.

PRE-DIVE CHECKS

There is no greater assurance than being able to see your camera and o-ring seal through the back of the housing. Our signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. Once the housing is closed you can see the o-ring form a solid, waterproof seal.

We recommend adding the optionalVacuum Kit with Gauge # 47011to pull a vacuum on the housing and check for leaks prior to entering the water.

CONSTRUCTION

Our specially formulated ABS-PC blend housing is highly durable yet significantly lighter than aluminium. The light colour keeps your camera cooler when shooting in warm, sunny environments.

LENS SUPPORT

Ikelite lens ports are the lightest on the market, yet robust and capable of standing up to rough surf.

We support a wide variety of lenses. Most popular zoom lenses and select focus rings can be engaged using simple gearing that puts adjustment right at your fingertips. Zoom and focus gears differ depending on which lens you are using.

Lens ports and zoom gears sold separately. Refer to the appropriate port chart for compatibility information.

WI-FI TRANSFER

Use the camera's built-in Wi-Fi feature to download photos to another device without removing the camera from the housing. The Wi-Fi feature is only usable above water within close proximity to the connected device.

COMPATIBILITY

Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.

Differences in lens and control placement prevent other camera models from being used in or adapted to this housing. We are not aware of any other models which may be used in or adapted to this housing.

Instruction Manual

IN THE BOX

• Housing

• Rear O-ring # 0132.59 (installed)

• Front O-ring # 0132.45 (installed)

• Zoom Gear Retainer # 75900 (installed)

• Port Hole Cover # 0200.92 (installed)

• Waterproof Bulkhead Cap # 9104.7 (installed)

• Base with Left-Hand Quick Release Handle # 4077.67 (installed)

• Camera Mount for Sony a1 II # 95453 (installed)

• Tool for Zoom Gear Retainer # 0945.06

• .050" Hex Key # 0945.11

• Silicone Lubricant 1cc Tube

The Deluxe Housing Additionally includes

• 200DL Housing # 71483

• Right Quick Release Handle # 4077.02 (installed)

• (2) Trigger Extensions # 4077.95 (installed)

• USB-C Charging & Data Transfer Bulkhead # 46007 (installed)

• Vacuum Pump with Gauge # 47011

• Spare Rear O-ring # 0132.59

• Spare Front O-ring # 0132.45

Optional Accessories

Spare Rear O-Ring # 0132.59 Carry a back-up in case original seal becomes damaged.

Spare Front O-Ring # 0132.45 Carry a back-up in case original seal becomes damaged.

Vacuum Pump with Gauge # 47011 Pressurize the housing to check for leaks prior to entering the water.

Right-Hand Quick Release Handle with Trigger Extensions for DL Housings # 40780 Makes a double tray for easier handling and a second attachment point for strobes or lights.

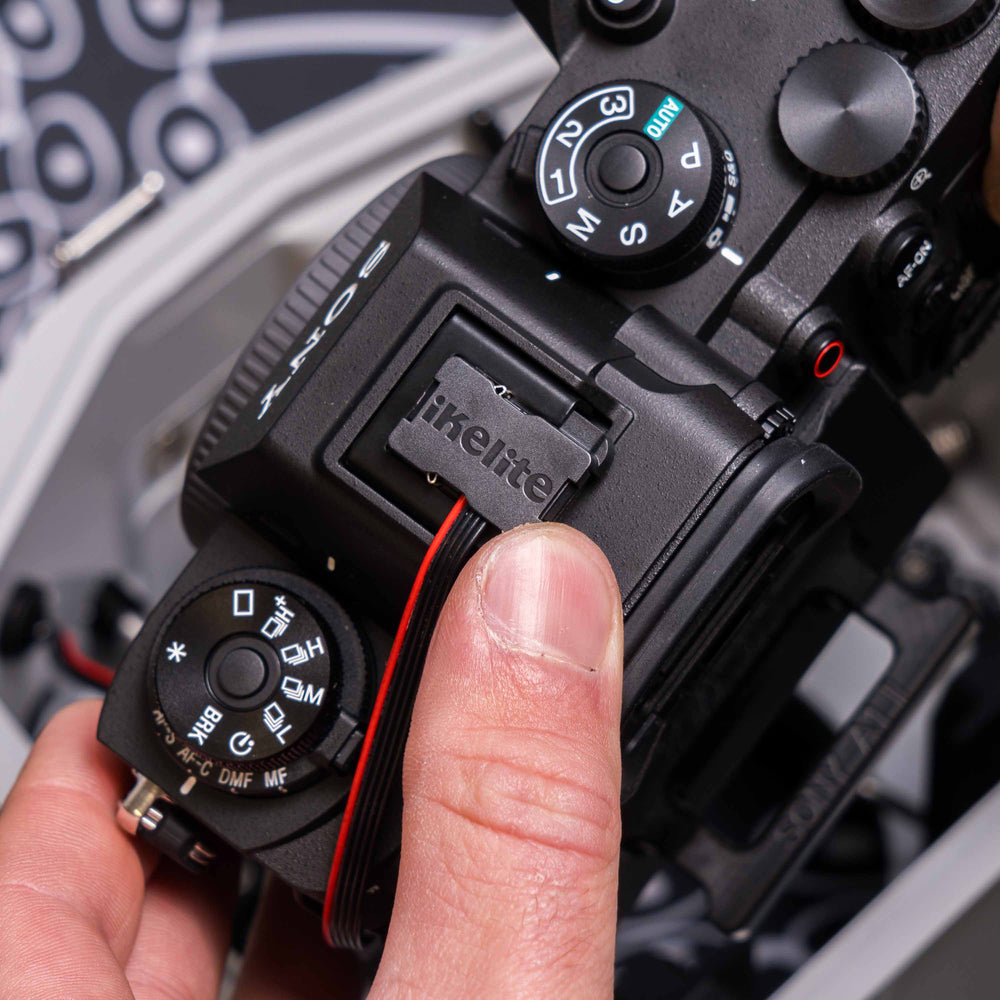

USB Charging & Data Transfer Bulkhead # 46007 Allows you to attach a high quality (3.0 or above) USB-C cable [not included] from the outside of your housing to charge the camera and offload photos and video to your laptop.

Cable Top Handle Grip # 4080.09 The most convenient way to carry the system when shooting with two strobe arms.

Adding an external strobe or video light enhances your photos' color and sharpness underwater. If you will be shooting below 45 ft (13m) or in an indoor pool, your photos will be predominantly blue-green without an artificial light source. Read more about strobe options
