Shipping from end of March 2025.
Technical Specifications:
Dimensions | 330 mm x 200 mm x 165 mm (W x H x D) |
Weight in air | 2.25kg |
Buoyancy in water | -0.5kg (incl. camera and batt) |
Depth Rating | 100m |
Port Opening | N120 |
Port Chart | N120 Panasonic L-Mount |
Compatible Cameras |
Panasonic Lumix S1R II |
Flash Trigger | #26305 Mini flash trigger for Panasonic/Fujifilm |
Accessory ports | Front: 1x M24 and 1 x M16, 1x M10 threaded hole, 8x 1/4"-20 threaded holes Rear: 1x M16 |
Vacuum valve | 25625 M16 Vacuum Valve II (Optional) |
HDMI | 2.0 / 1.4 |

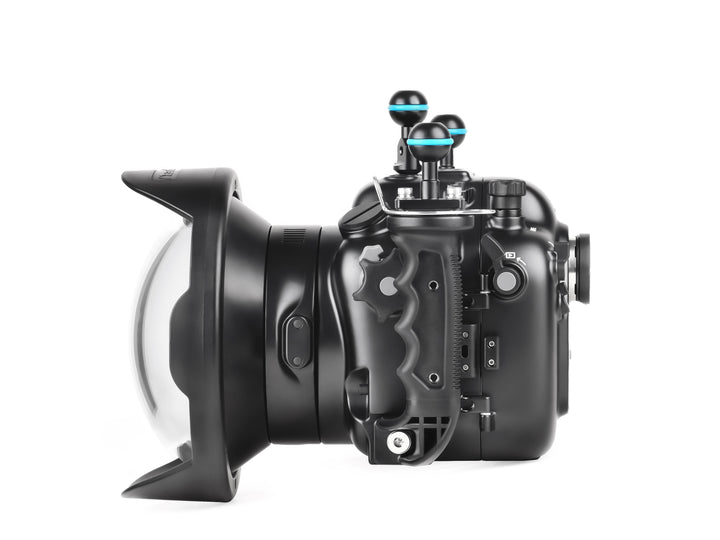

The Nauticam NA-S1R II Underwater Housing
Features
- Rotary housing lock, DSLR port lock and handles
- M24 accessory port on front supports HDMI 2.0/1.4 cable system.
- 1 x M10 threaded hole (mounting points for external monitor)
- 8 x 1/4-20 threaded holes (for optional accessories)
- AF-ON lever on the right side, and PLAYBACK lever on the left.
What’s in the box?
- NA-S1R II Housing
- 90137 Spare main O-ring, o-ring remover and lubricant
- 2 x Plugs for Optical fiber cable mount
- 2 x Handles with mounting balls
- Panasonic CR-2032 Battery (for moisture alarm)
- Set of Allen Keys
- Padded housing bag and shoulder strap
Recommended Accessories
Vacuum Valve
- 25625 M16 Vacuum Valve II (Pushbutton Release)
Viewfinder
- 32211 Full Frame Straight Viewfinder 32°/ 1:1
- 32212 Full Frame Straight Viewfinder 40°/ 0.8:1
- 32213 Full Frame Angle Viewfinder 32°/ 1:1
- 32214 Full Frame Angle Viewfinder 40°/ 0.8:1
- 87213 Reverse Angled Viewfinder for EMWL 40°/ 0.8:1
- 87214 Reverse Straight Viewfinder for EMWL 40°/ 0.8:1
- 87215 Reverse Angled Viewfinder for EMWL 32°/ 1:1
- 87216 Reverse Straight Viewfinder for EMWL 32°/ 1:1
*32212/32214, 87213/87214 are preferred.
Hand strap
- 28130 Hand Strap for 28113
Handles
- 28123 Pair of handles - size S (10mm closer to housing)
Optical Trigger
- 26305 Mini Flash trigger Fujifilm/Canon/Panasonic (compatible with NA-XT3/4/5,NA-R7/R6II/S5II)
Housing Mount
- 25221 M10 strobe mounting ball for housing
- 25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
- 17959 Housing Mounting ball with 1/4'' screws
- 17960 Universal Quadra-Pod Plate for Nauticam Housings
- 25218 Mounting ball set for tripod
Surface USB-PD Powerbank
- 26325 USB-C Bulkhead with USB-C Connector *Can be installed on either M24 or M16.
- 26326 M24-M16 Adaptor for use with 26325 *for use with M24 only.
Housing O-rings
- 90137 Housing O-ring (I.D.=170mm, C.S.=2.5mm)
HDMI OUTPUT
1) Required accessories for HDMI 2.0 Cable System
- 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
- 25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-a1 to use with Ninja V housing)
Monitor housing
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
*HDMI 2.0 26325 USB-C Bulkhead can be used together
2) Required accessories for HDMI 1.4 Cable System
- 25033 Standard HDMI bulkhead with M16 thread (included in 17927)
- 26326 M24-M16 Adaptor for use with 26325
- 25075 HDMI (D-A) Cable in 190mm Length for NA-GH5/G9 (for internal connection from HDMI bulkhead to camera)
*1. 25075 and 26325 can’t be used together.
*2. 25100 HDMI (D-A) cable in 190mm length for NA-a1 (for connection from HDMI bulkhead to camera) included in 17927, To be tested with M16 port.
Monitor housings
- 17927 NA-Shinobi II Housing for Atomos Shinobi 5.2" Monitor with HDMI 1.4 input
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit
Reorder/Monitor/Player (excl. HDMI 2.0 cable)
- 25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead)
Wet Lenses
- 81202 Super Macro Convertor 2 (4x Magnification)
- 81203 Super Macro Convertor 3 (2.3x Magnification)
- 81501 Mid-range Focus Optimizer 1
- 83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
- 83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses (incl. float collar)
- 85204 0.57x Wide Angle Conversion Port - 2 (WACP-2) 140 Deg. FOV with Compatible14mm Lenses (incl. float collar)
- 85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
- 85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and Interchangeable Port Mounting Ring - (WACP-1B)
- 85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg. FOV with Compatible 28mm Lenses
- 86201 Macro to Wideangle Lens 1 (MWL-1) 150 deg. FOV with full frame 60mm macro lens
- 87202 EMWL Focusing Unit #2 (for Canon FF 100mm & APS-C 60mm)
- 87302 EMWL Set #2 (incl. focusing unit #2, 150mm relay lens and 3 objective lenses)
- 87303 EMWL Set #3 (incl. focusing unit #3, 150mm relay lens and 3 objective lenses)
- 87211 EMWL 150mm Relay Lens
- 87212 EMWL Angled Relay Lens
- 87221 EMWL 60° Objective Lens
- 87222 EMWL 100° Objective Lens
- 87223 EMWL 130° Objective Lens
- 87226 EMWL 160° Objective Lens
Optional Accessories for using with Wet Lenses:
- 25101 M67 flip diopter holder for M67 macro ports
- 25108 M67 Double Flip Holder for M67 Macro Ports
- 83213 M67 to Bayonet Mount Converter II
- 83214 Bayonet Mount Adaptor for SMC/CMC
- 83250 M67 to Bayonet Mount Converter II
- 83251 M77 to Bayonet Mount Converter II
- 87501 Flip Holder for EMWL
- 87512 Shade for 130° Objective Lens
- 87513 Shade for 100° Objective Lens
- 87519 Shade for 160° Objective Lens
- 87518 Strobe Mounting Brackets for EMWL Relay Lens
Buoyancy Recommendation for Housing Setups
depending on port and lens choices
- 72216 Ø70x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 370g)
- 72217 Ø70x250mm Carbon Fibre Aluminium Float Arm (Buoyancy 520g)
- 72218 Ø70x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 670g)
- 72219 Ø90x170mm Carbon Fibre Aluminium Float Arm (Buoyancy 450g)
- 72220 Ø90x220mmCarbon Fibre Aluminium Float Arm (Buoyancy 720g)
- 72233 Single Bayonet Holder II for Ø70 Float Arm
- 72234 Double Bayonet Holder II for Ø70 Float Arm
- 83252 Bayonet Holder for Arms
- 83253 Double Bayonet Holder for Arms
- 83254 Bayonet Lens Holder for Inon Float Arms
