200DL Underwater Housing for Canon EOS R5 II Mirrorless Digital Camera
Product # 71765 - Housing and Base with Left-Hand Quick Release Handle

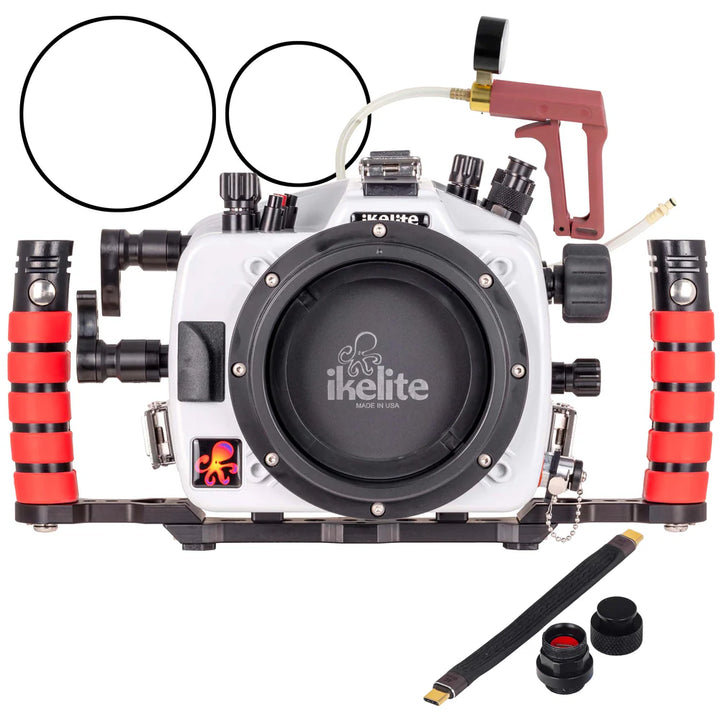

Product # 71765-DLX - Deluxe Housing includes: Tray with Dual Handles, Trigger Extensions, Vacuum Pump, USB-C Charging & Data Transfer Bulkhead and a set of spare O-Rings.
About the Deluxe Version
We've set up the Deluxe 200DL Underwater Housing for Canon EOS R5 II exactly the way we would use it with Dual Tray with Dual Handles, Trigger Extensions, Vacuum Pump, USB-C Charging & Data Transfer Bulkhead, and a set of spare O-Rings.
This is a full featured and durable waterproof housing for Canon EOS R5 II full-frame mirrorless digital cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.
The housing provides full creative control over the camera. A dual-action lens release control makes it easy to use either EF or RF series lenses. Our custom ABS-PC blend is lighter than aluminum yet strong enough for almost anything you want to throw at it.
The included Vacuum Pump with Gauge allows you to check for leaks prior to entering the water.
The first-of-its-kind USB-C Charging & Data Transfer Bulkhead allows you to offload photos and top off the battery without removing your camera and lens from the housing.
About the Housing
A full featured and durable waterproof housing for Canon EOS R5 II full-frame mirrorless digital cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.
The housing provides full creative control over the camera. A dual-action lens release control makes it easy to use either EF or RF series lenses. Our custom ABS-PC blend is lighter than aluminum yet strong enough for almost anything you want to throw at it.
This housing requires the addition of a compatible DL Lens Port for waterproof operation. Lens Port not included.
View the DL Port Chart for Canon RF Mount...
Made in USA
No other manufacturer makes professional functionality so accessible. Our housings are designed from the ground up to provide full camera control and connection for external strobe lighting out of the box. Advanced features including TTL lighting exposure and enhanced magnifying viewfinders are available as needed.
Our DL-series lens ports are optimized to be the lightest on the market with superb image quality. The materials chosen for our housings and lens ports are chosen to maximize durability and corrosion resistance while minimizing travel weight and cost.
| Controls |
Controls are provided for everything except Depth of field preview button, Multi-function lock button, Multi-controller (can be pushed in for use as a user programmable button), MODE button (re-assign Mode function to Bulb button when for use inside of the housing) |
| Strobe Connector |
Ikelite Bulkhead with Manual Hotshoe
|
| Port Mount |
DL (Dry Lock) |
| Accessory Port |
(2) M16 Thread |
| Depth Rating |
200 feet (60 meters) |
| Weight |
5.4 lb (2.45kg) |
| Dimensions |
8.75 x 6.875 x 6.5" (220 x 175 x 165 mm) |
| Rear O-Ring |
0132.59 |
| Front O-Ring |
0132.45 |
Pre-dive Checks
There is no greater assurance than being able to see your camera and o-ring seal through the back of the housing. Our signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. Once the housing is closed you can see the o-ring form a solid, waterproof seal.
We recommend adding the optional Vacuum Kit with Gauge # 47011 to pull a vacuum on the housing and check for leaks prior to entering the water.
Construction
Our specially formulated ABS-PC blend housing is highly durable yet significantly lighter than aluminium. The light colour keeps your camera cooler when shooting in warm, sunny environments.
Lens Support
Ikelite lens ports are the lightest on the market, yet robust and capable of standing up to rough surf.
We support a wide variety of lenses. Most popular zoom lenses and select focus rings can be engaged using simple gearing that puts adjustment right at your fingertips. Zoom and focus gears differ depending on which lens you are using.
Lens ports and zoom gears sold separately. Refer to the appropriate port chart for compatibility information.
Wi-Fi Transfer
Use the camera's built-in Wi-Fi feature to download photos to another device without removing the camera from the housing. The Wi-Fi feature is only usable above water within close proximity to the connected device.
Compatibility
Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.
Differences in lens and control placement prevent other camera models from being used in or adapted to this housing. We are not aware of any other models which may be used in or adapted to this housing.
In the Box
-
Housing
- Rear O-ring # 0132.59 (installed)
- Front O-ring # 0132.45 (installed)
- Zoom Gear Retainer # 75900 (installed)
- Port Hole Cover # 0200.92 (installed)
- Waterproof Bulkhead Cap # 9104.7 (installed)
- Base with Left-Hand Quick Release Handle # 4077.67 (installed)
- Tool for Zoom Gear Retainer # 0945.06
- .050" Hex Key # 0945.11
- Silicone Lubricant 1cc Tube
- 2-year Limited Warranty
Accessories
Spare Rear O-Ring # 0132.59 Carry a back-up in case original seal becomes damaged.
Spare Front O-Ring # 0132.45 Carry a back-up in case original seal becomes damaged.
Vacuum Pump with Gauge # 47011 Pressurize the housing to check for leaks prior to entering the water.
Right-Hand Quick Release Handle # 4077.02 Makes a double tray for easier handling and a second attachment point for strobes or lights.
Trigger Extension # 4077.95 Recommended if using the Right-Hand Quick Release Handle. Brings shutter or AF-ON lever out to handle for more comfortable use (requires 2 to extend both controls).
DL5 DS Link Canon TTL Converter and CT1 TTL Hotshoe Kit # 46075 Fast, accurate, automatic TTL strobe exposure when used together with compatible Ikelite DS strobes.
45º Magnified Viewfinder (Type 3) # 6891.3 Brighter, larger, and more ergonomic positioning when shooting under water. Rotates for landscape or portrait shots.
USB Charging & Data Transfer Bulkhead for 200DL and 50DL Underwater Housings # 46007 Allows you to attach a high quality (3.0 or above) USB-C cable from the outside of your housing to charge the camera and offload photos and video to your laptop.
