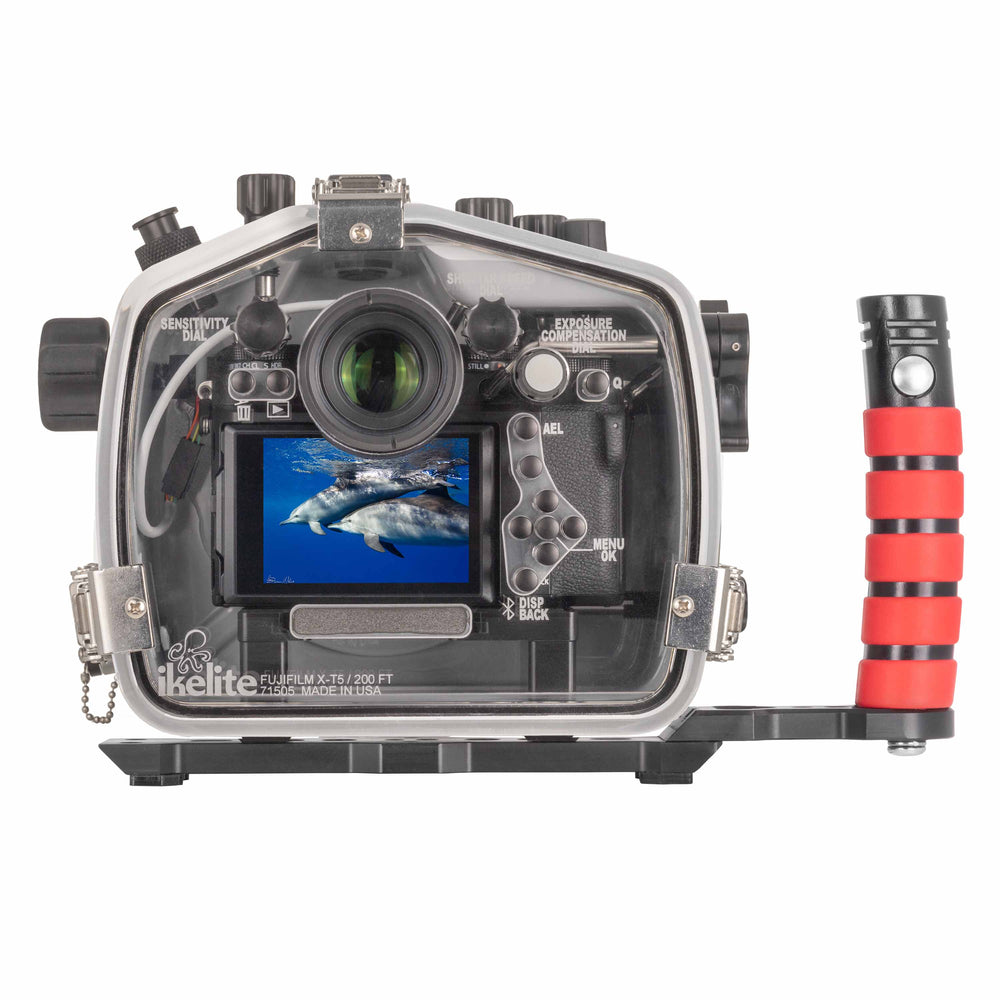

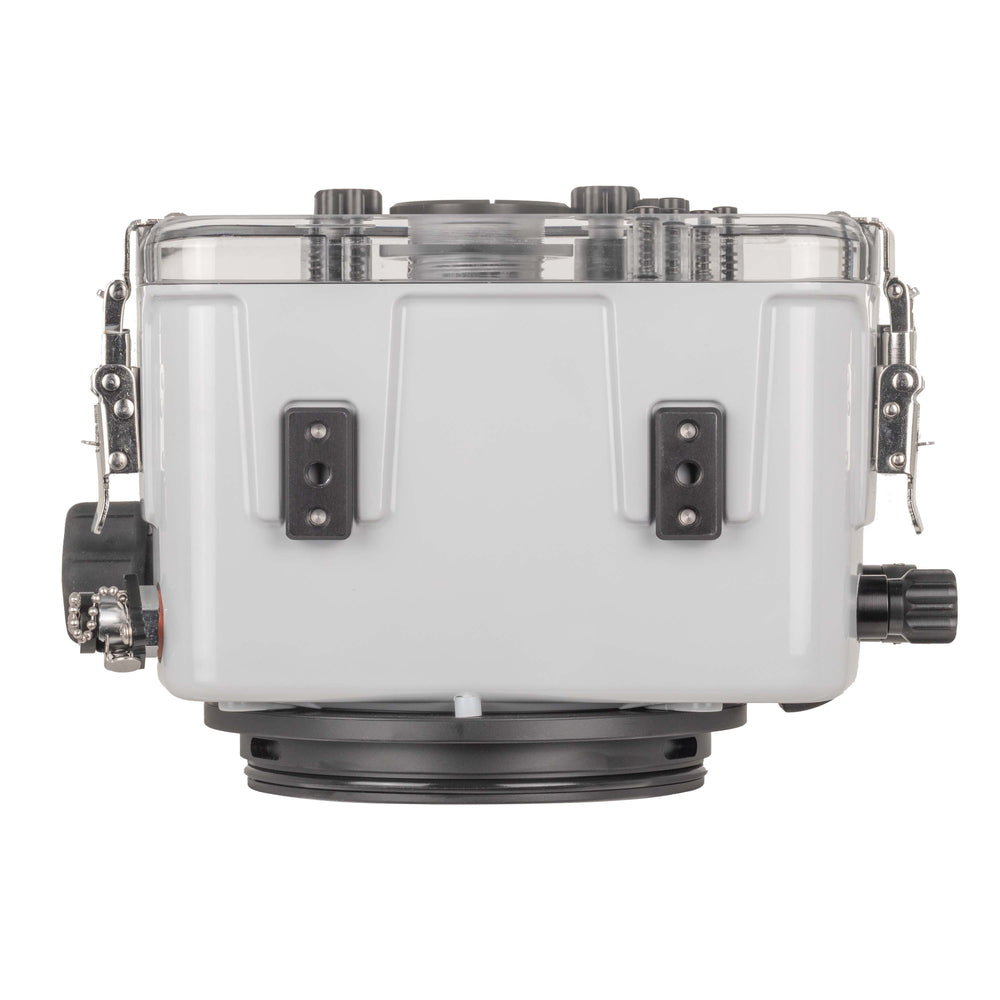

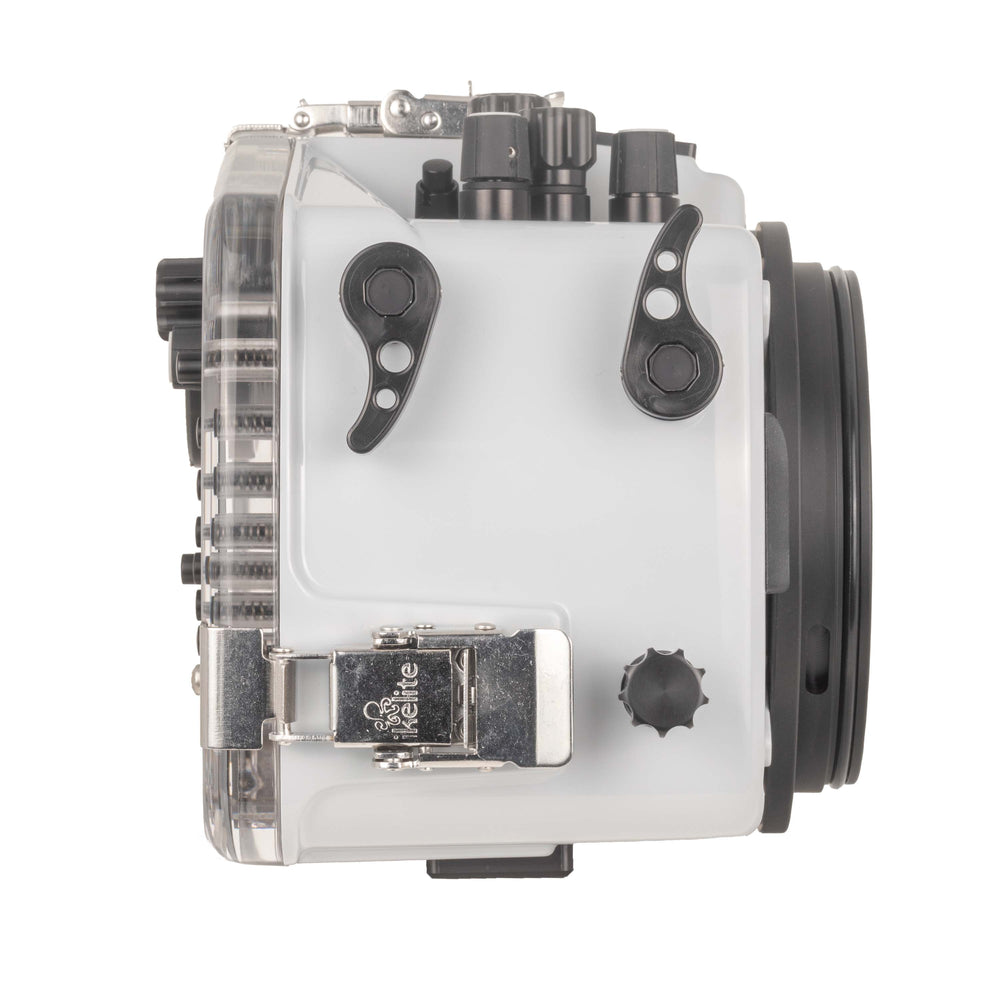

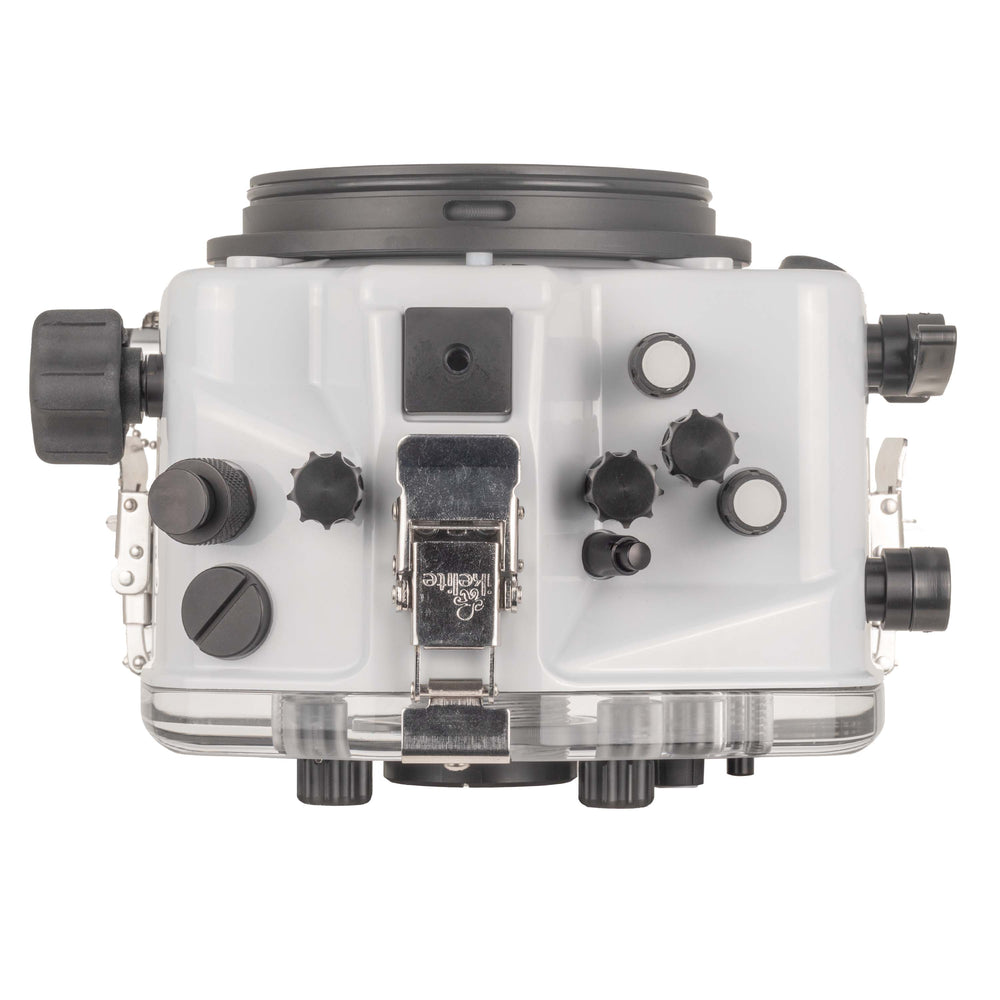

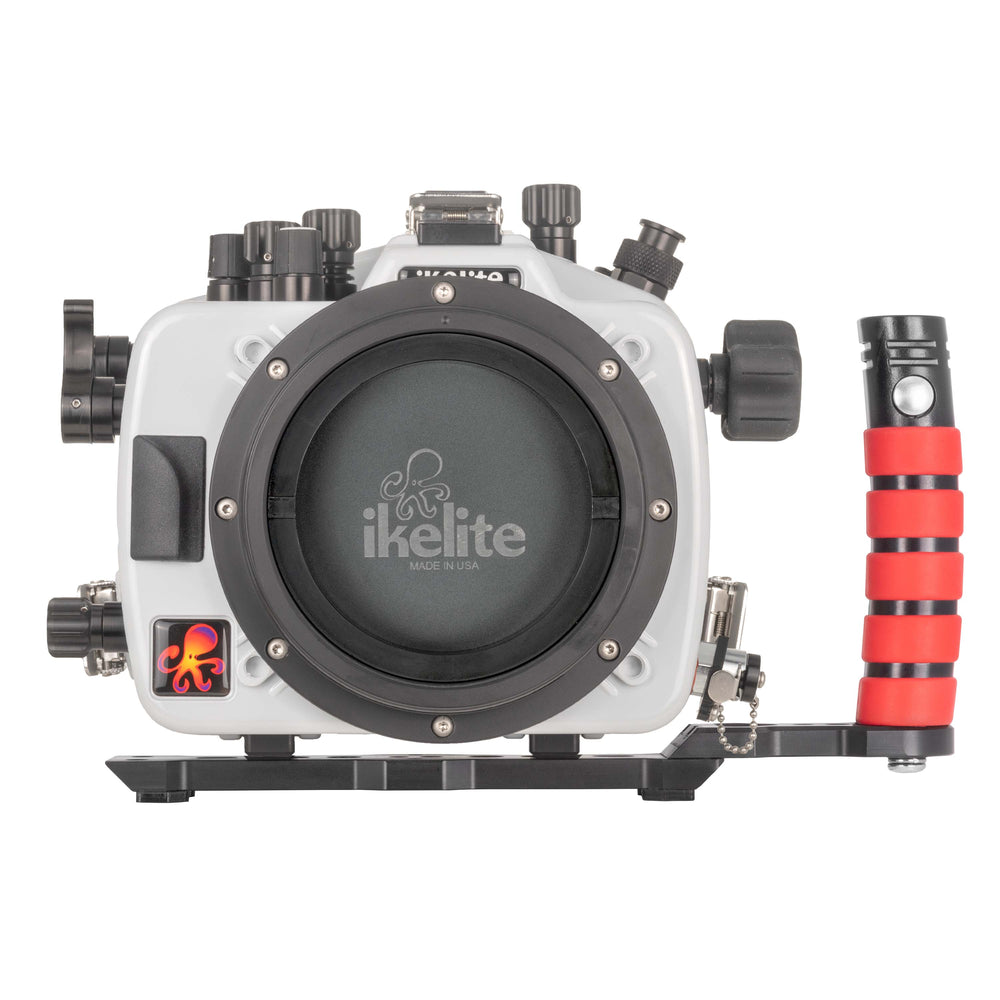

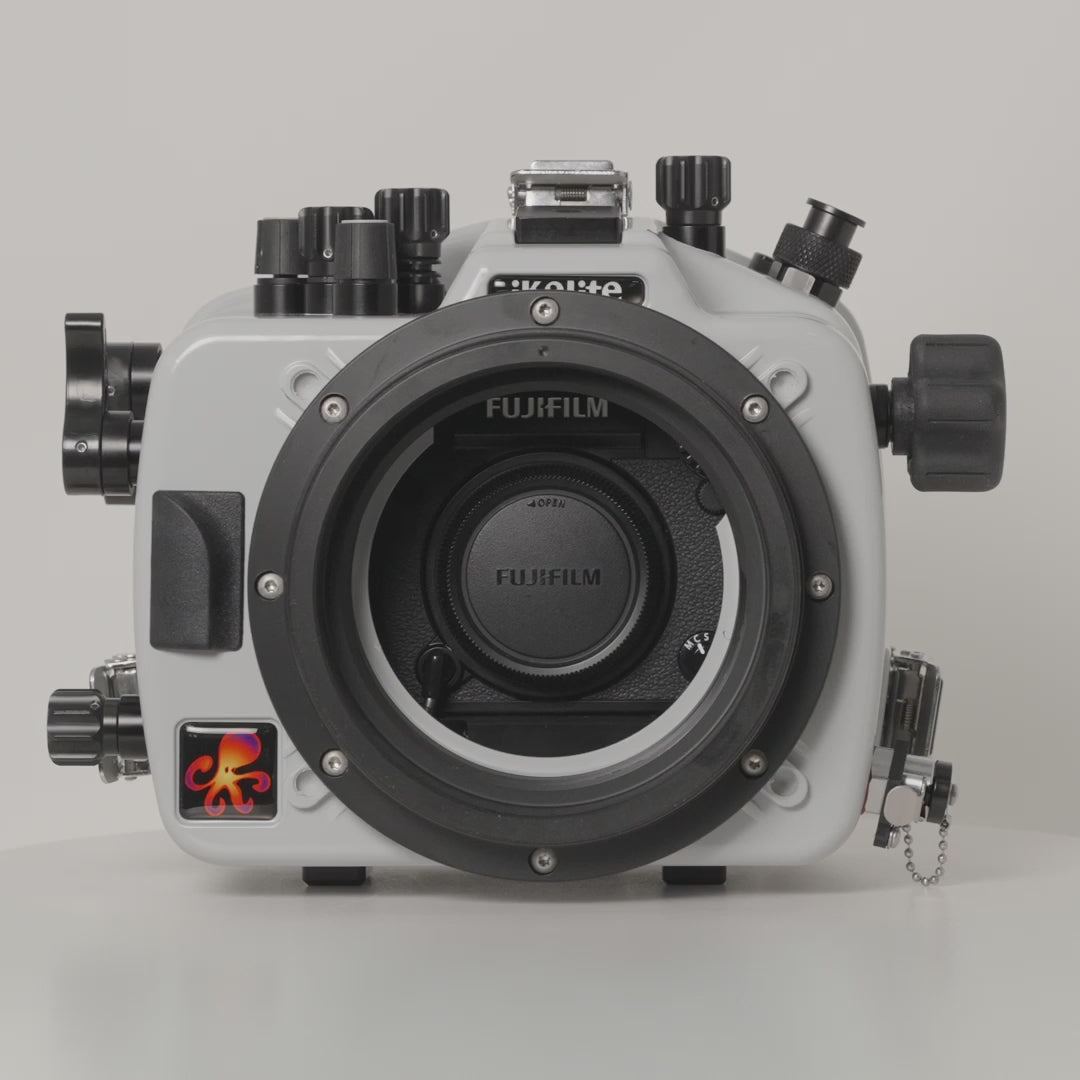

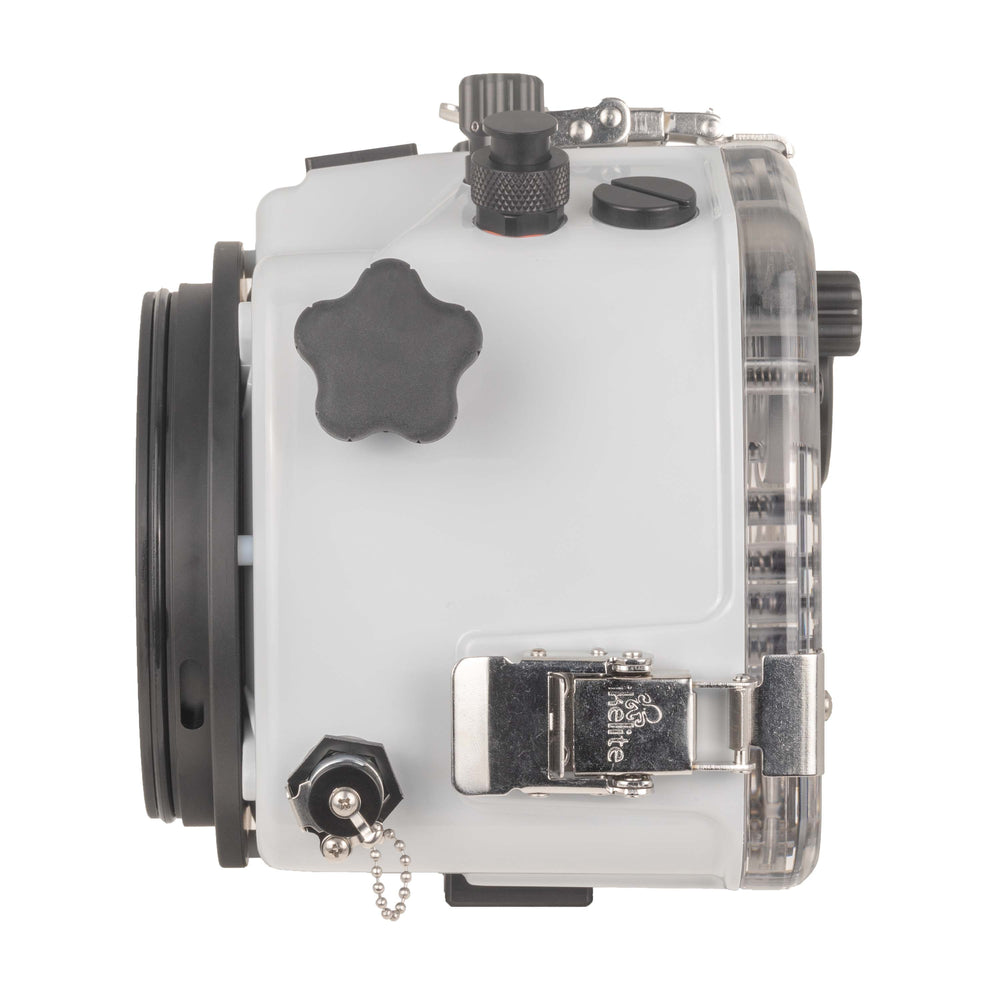

200DL Underwater Housing for Fujifilm X-T5 Mirrorless Digital Camera

71505

A full featured and durable waterproof housing for Fujifilm X-T5 mirrorless digital cameras. Suitable for scuba, snorkel, surf, pool, and any application in or around the water.

LENS PORT REQUIRED (Sold Separately)

A compatible lens port is required for waterproof operation (sold separately). Choose the correct port components on the lens you will be shooting.

View the DL Port Chart

No other manufacturer makes professional functionality so accessible. Our housings are designed from the ground up to provide full camera control and connection for external strobe lighting out of the box. Advanced features including TTL lighting exposure and enhanced magnifying viewfinders are available as needed. Our DL-series lens ports are optimized to be the lightest on the market with superb image quality. The materials chosen for our housings and lens ports are chosen to maximize durability and corrosion resistance while minimizing travel weight and cost.

PRE-DIVE CHECKS

There is no greater assurance than being able to see your camera and o-ring seal through the back of the housing. Our signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. Once the housing is closed you can see the o-ring form a solid, waterproof seal.

We recommend adding the optional Vacuum Kit with Gauge # 47011 to pull a vacuum on the housing and check for leaks prior to entering the water.

CONSTRUCTION

Our specially formulated ABS-PC blend housing is highly durable yet significantly lighter than aluminium. The light colour keeps your camera cooler when shooting in warm, sunny environments.

LENS SUPPORT

Ikelite lens ports are the lightest on the market, yet robust and capable of standing up to rough surf.

We support a wide variety of lenses. Most popular zoom lenses and select focus rings can be engaged using simple gearing that puts adjustment right at your fingertips. Zoom and focus gears differ depending on which lens you are using.

Lens ports and zoom gears sold separately. Refer to the appropriate port chart for compatibility information.

WI-FI TRANSFER

Use the camera's built-in Wi-Fi feature to download photos to another device without removing the camera from the housing. The Wi-Fi feature is only usable above water within close proximity to the connected device.

COMPATIBILITY

Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.

Differences in lens and control placement prevent other camera models from being used in or adapted to this housing. We are not aware of any other models which may be used in or adapted to this housing.

Instruction Manual coming soon

IN THE BOX

• Housing Rear O-ring # 0132.59 (installed)
• Front O-ring # 0132.45 (installed)
• Zoom Gear Retainer # 75900 (installed)
• Port Hole Cover # 0200.92 (installed)
• Waterproof Bulkhead Cap # 9104.7 (installed)
• Base with Left-Hand Quick Release Handle # 4077.67 (installed)
• Tool for Zoom Gear Retainer # 0945.06
• .050" Hex Key # 0945.11
• 1/16" Hex Key # 0945.16
• Silicone Lubricant 1cc Tube

Optional Accessories

Spare Rear O-Ring # 0132.59 Carry a back-up in case original seal becomes damaged.

Spare Front O-Ring # 0132.45 Carry a back-up in case original seal becomes damaged.

Vacuum Pump with Gauge # 47011 Pressurize the housing to check for leaks prior to entering the water.

Right-Hand Quick Release Handle # 4077.02 Makes a double tray for easier handling and a second attachment point for strobes or lights.

Trigger Extension # 4077.95 Recommended if using the Right-Hand Quick Release Handle. Brings shutter or AF-ON lever out to handle for more comfortable use (requires 2 to extend both controls).

DL4 DS Link Fujifilm TTL Converter Ikelite FT1 Hotshoe Kit # 46082 Fast, accurate, automatic TTL strobe exposure when used together with compatible Ikelite DS strobes.

Cable Top Handle Grip # 4080.09 The most convenient way to carry the system when shooting with two strobe arms.

Adding an external strobe or video light enhances your photos' color and sharpness underwater. If you will be shooting below 45 ft (13m) or in an indoor pool, your photos will be predominantly blue-green without an artificial light source. Read more about strobe options
