Nauticam NA-E2F Housing for Z Cam E2-S6, E2-F6, E2-F8, E2-M4 Cinema Camera - 16505

$13,867.50

Tax included. Shipping calculated at checkout.

Free NZ shipping over $250

Two Year Manufacturer's Warranty

International Shipping

Yes, we ship to Australia! We use DHL Express, which should take 1-3 business days depending on your shipping address. Our checkout will automatically determine your shipping cost.

Outside of Australia? Contact us and we can organise.

You can find more information about shipping on our FAQs page.

How long will it take for my order to arrive after I make payment?

That depends on where you live and whether we have an item in stock or not. While we do have many items in stock, we don't carry everything. (For example, we do not stock most housings or ports as there are just too many!) If you need an item in a hurry, it's a good idea to contact us and find out if your item is in stock, or if we can get it in a hurry - we often can!

If we have it in stock, we can usually send it out as soon as we receive payment (1-3 business days), or you can pick it up. If an item is not in stock, we'll need to order it from our suppliers, which means it can take 1-2 weeks to arrive at your door (usually closer to a week).

Sometimes delivery can take longer, if our manufacturers are out of stock, for example, but this is unusual - we let customers know as soon as possible if something like this happens.

How do you ship my NZ orders?

We use New Zealand Post Courier to ship orders. New Zealand Post aims for next-day delivery nationwide between major towns and cities in the North Island. South Island delivery can take two days. If you require next-day delivery in South Island, choose the express shipping option for the South Island. If you spend over $250 get your shipping for free!

Download PDF

Port charts

Nauticam Lens Port Charts

Name: Nauticam NA-E2F Housing for Z Cam E2-S6, E2-F6, E2-F8, E2-M4 Cinema Camera - 16505
Brand: Nauticam
SKU: NAU-16505
Price: 13867.5 NZD
Availability: InStock

Most Nauticam housings offer interchangeable ports that allow for the use of a variety of lenses, however different lenses may require different ports and extensions rings to maintain or correct for underwater optics. Some lenses allow for access to zoom and manual focus functions when inside the housing via a gear set that works in conjunction with a supported housing or extension ring. Consult the appropriate chart for your housing system. If a lens is not listed, it does not necessarily mean it will not work, it means that Nauticam have not tested it. For questions regarding lens compatibility please contact us.

For N200 with Cinema Housings, please contact us also.

Updated 22/11/24

N120

N120 Canon EF Mount

N120 Canon RF Mount

N120 Nikon F Mount

N120 Nikon Z Mount (Z6III)

N120 Nikon Z Mount (Z7II Z8 Z9)

N120 Panasonic L Mount

N120 Fujifilm GF-Mount

---

WACP-1 Wide Angle 0.36x Conversion Port

WACP-2 0.8x Conversion Port

WACP-C

WWL-1 and WWL-1B for 28mm Lenses

WWL-C for 24mm Lenses

EMWL Extended Macro Wide Lens

MWL-1 Macro to Wide Angle Lens 1

FCP-1 Fisheye Conversion Port

N100

N100 Canon RF Mount

N100 Fujifilm X Mount

N100 Nikon DX Format Z Mount

N100 Sony A7, A7S, A7R.

N100 Sony A7RII, A7SII, A7RIII, A7RIV, A9, A7SIII, A7C, A1

N100 Sony A7C

N85

N85 Micro 4/3 Panasonic and Olympus

N85 Sony E-Mount

N85 Fujifilm X Mount XT1, XT2

N85 Canon EF-M Mount

N85 Nikon 1 System

N120 Cinema

N120 Cinema (EF & RF)

N120 PhaseOne Systems

N120 Port Chart for Hasselblad Systems

N120 Red Cinema with Nikon Mount

N120 Camcorder Sony PXW-Z100/FDR-AX 1

N50 Compact

N50 Compact Housings

Recommended Accessories

This item is non-returnable, non-refundable, non-cancellable, and may be subject to extended lead times as it is manufactured on demand. We always do our best to meet trip deadlines so please advise us if you have a trip coming up!

The Z Cam flagship series of cameras continues to impress the cinema world with up to 8K resolution, 12-Bit ProRes RAW, and an incredibly affordable price. The compact and modular nature of the Z Cam lineup combined with the Nauticam housing has resulted in one of the smallest and most travel friendly cinema cameras currently on the market.

Dimensions (with handles)	336 mm (W)x 185 mm (H) x 242 mm (D)
Weight in Air	3.58 kg
Weight in Water (incl. camera and battery)	-0.27 kg
Depth Rating	100m
Port Opening	N120

INTRODUCING NA-E2F CINEMA

The Z Cam Lineup

The Z Cam flagship lineup is comprised of four models, the E2-F8, E2-F6, E2-S6, and the E2-M4. The Nauticam NA-E2F housing will accommodate all four models.

Key Camera Specifications:

E2-F8

8K 30fps, 6K 30fps, 4K 60fps, 10-bit color
12-Bit ProRes RAW Recording over HDMI to Atomos Ninja V
Full Frame CMOS Sensor
Dual native ISO
14 stops dynamic range
ZRAW supported
EF Mount
Gigabit Ethernet for data, control, and live preview

E2-F6

6K 60fps, 4K 120fps, 10-bit color
12-Bit ProRes RAW Recording over HDMI to Atomos Ninja V
Full Frame CMOS Sensor
15 stops dynamic range
ZRAW supported
EF Mount
Gigbit Ethernet for data, control, and live preview

E2-S6

6K 60fps, 4K 100fps, 10-bit color
12-Bit ProRes RAW Recording over HDMI to Atomos Ninja V
Super 35 CMOS Sensor
14 stops dynamic range
ZRAW supported
EF Mount
Gigabit Ethernet for data, control, and live preview

E2-M4

4K 160fps, 10-bit color
12-Bit ProRes RAW Recording over HDMI to Atomos Ninja V
4/3" WDR CMOS Sensor
13-15 stops dynamic range (16 stops with WDR enabled)
ZRAW (partial debayer)
MFT Mount
Gigabit Ethernet for data, control, and live preview

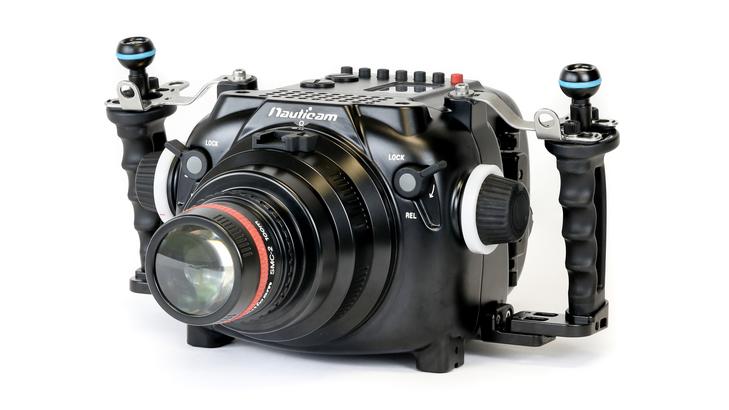

The Nauticam NA-E2F Housing

The NA-E2F follows suit with the original NA-E2 as one of the lightest and smallest raw-capable cinema housings ever produced. Nauticam has been a leader in cinema housings with offerings for RED, ARRI, Canon, PhantomFlex, Sony and now Z Cam.

The NA-E2F uses the N120 Cinema port system, shared with Nauticam's other N120 platform cameras which allows for easy transition to the NA-E2F from other N120 Nauticam systems. The N120 system also provides access to Nauticam's line of professional premium optics such as the WACP-1/2 and SMC-1/2.

The Z Cam E2-M4 can be used with either the Z Cam EF Mount or using the native MFT mount with Metabones EF-MFT Speed Booster Ultra 0.71x Adaptor. When using the Metabones Speed Booster, the mounting position of the camera tray must be adjusted by the user.

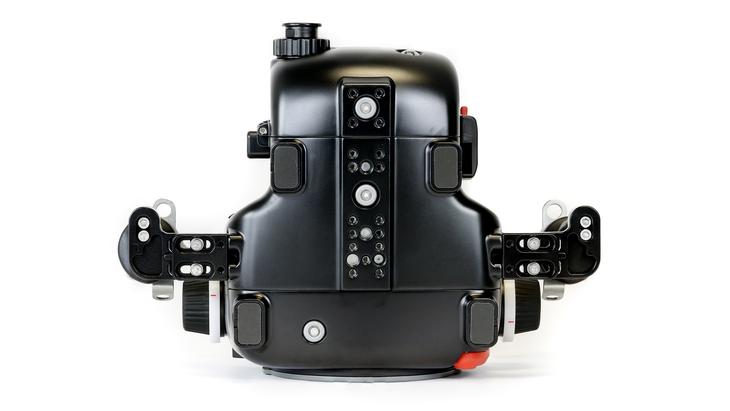

There are 17 LANC control buttons ergonomically placed around the housing including dedicated iris+/iris-, record, focus near/focus far, eND+/eND-, and many more. 1/4"-20 size mounting threads are located on the top and bottom of the housing for easy mounting of cinema accessories.

The NA-E2F supports an ethernet surface feed in 5m (pole cam) and 45m (studio) lengths. The Z Cam E2 lineup offers a wide range of remote control options including live preview over ethernet. This opens up the option of using an ethernet to lighting adaptor, then having an iPad or iPhone on the surface to allow monitoring and full control via the Z Cam app.

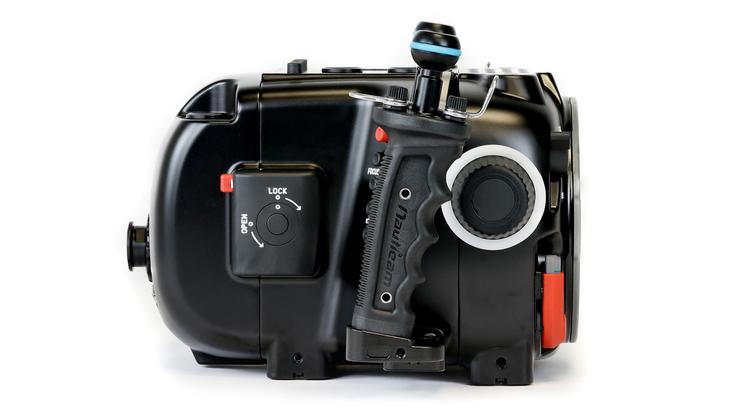

The housing also features adjustable handles with cinema style zoom and focus knobs.

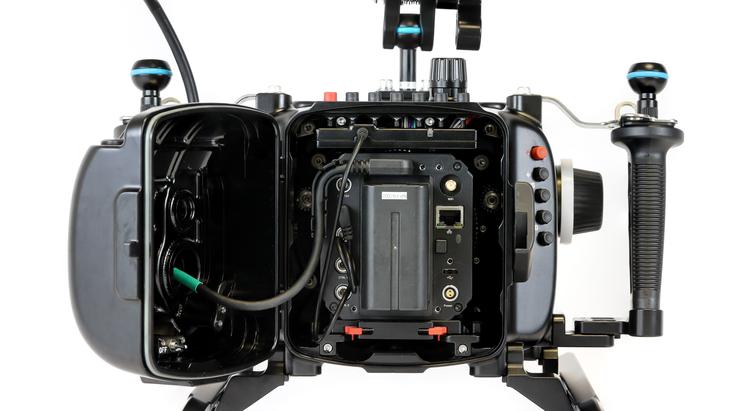

The E2 lineup supports Sony NP-F series batteries and the NA-E2F matches this compatibility up to and including the FP-970.

As with the NA-BMPCC2 and NA-E2, the NA-E2F allows for the internal mounting of a Samsung T-5 SSD drive as recording media making the transition from capture to edit seamless.

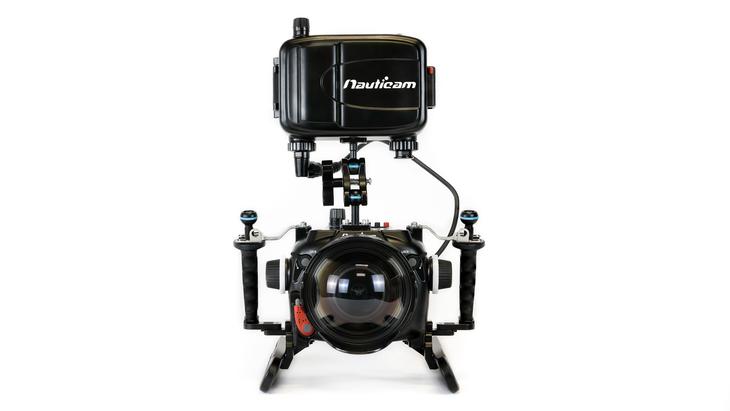

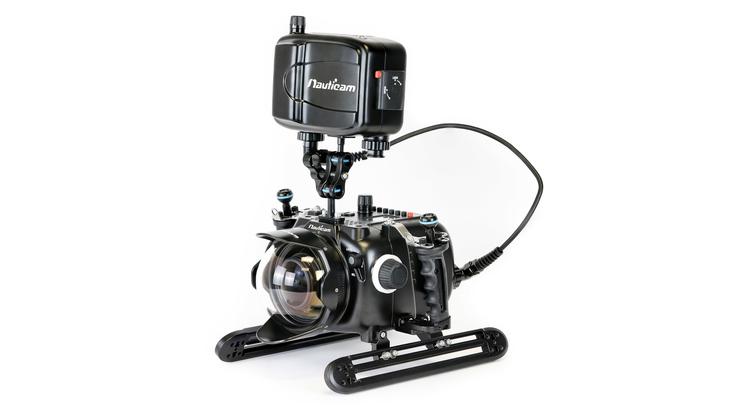

The Z Cam E2 lineup requires an external monitor and Nauticam produces several options for both SmallHD and Atomos monitors. To access the 12-Bit ProRes RAW Recording, you will need to use the Atomos Ninja V monitor with the Nauticam Ninja V housing. The NA-E2F features both an M28 and four M16 bulkheads supporting both HDMI 2.0 (M28) and HDMI 1.4 (M16) connections.

HDMI OUTPUT

Required accessories for HDMI 2.0 Cable System

25079 M28A2R210-M28A1R170 HDMI 2.0 Cable (for NA-GH5V/E2/E2F to use with Ninja V housing)
25088 Cable Clamp for NA-E2/E2F Housing with Screws

Required accessories for HDMI 1.4 Cable System

16243 HDMI A-D Cable in 0.5m Length for RED DSMC2/C200/EVA1/E2 (for internal connection)
25033 standard HDMI bulkhead with M16 thread

Recommended monitor housing

17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” Recorder/Monitor (with HDMI 2.0 support)
17920 NA-502B-H Housing for SmallHD 502 Bright Monitor (with HDMI 1.4 input support)

Resources

NA-E2F PDF Manual Download

In The Box:

NA-E2F Housing
90139 Housing O-ring, lubricant, O-ring remover
2x Handles with mounting balls
CR2032 Battery (for moisture alarm and vacuum system)
Padded Travel Case
Allen Wrench Set

Recommended Accessories:

25625 M16 Vacuum Valve II (Pushbutton Release)
17959 Housing Mounting Ball with 1/4" Screws
25221 M10 Strobe Mounting Ball for Housing
16232 0.25kg Trim Weights for 16227
16233 0.5kg Trim Weights for 16227
16261 Ethernet Surface Cable Set in 45m length (Incl. housing lemo bulkhead with integrated internal cable and external Duracell cables)
16262 Replacement of Housing Lemo Bulkhead with Integrated Ethernet Cable
16263 Ethernet Surface Cable Set in 5 meter length (Incl. housing lemo bulkhead with integrated internal cable and external Duracell cables)
16264 Housing Skids for NA-E2F

Housing Features

PATENTED PORT LOCKING SYSTEM

Unveiled on the very first Nauticam DSLR housing in 2009, this locking lever has become a signature of the Nauticam brand. No twisting or threading action is required to mount a port, and it locks securely in place with this lever. Nauticam also offers locking port extensions, meaning a dome will never twist, even when used with a long extension ring.

MISSION CONTROL DESIGN

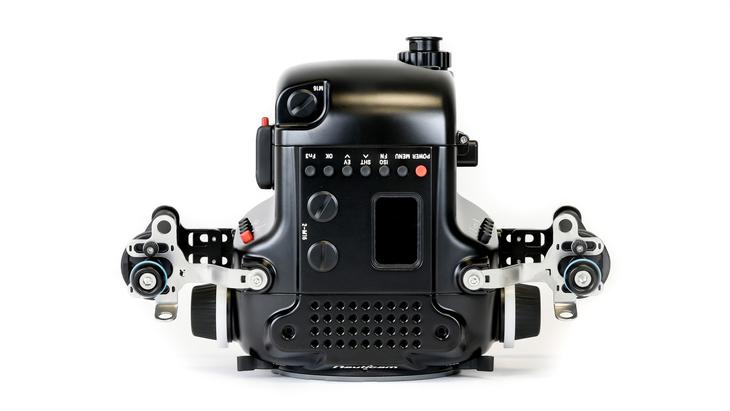

Nauticam engineers are driven to make the housings as easy and intuitive to ensure you don't miss a shot. The NA-E2F has 17 LANC control buttons ergonomically placed around the housing allowing easy reach of the controls you need most.

HDMI 2.0 Support

The NA-E2F features an M28 bulkhead to support HDMI 2.0 output as well as four M16 bulkheads for HDMI 1.4 allowing for the use of a variety of external monitors and recorders.
