NA-R5 for Canon EOS R5 Camera

The Canon EOS R5 is attractive to underwater image makers for avarietyof reasons. It isa 45MP fullframe mirrorless camera that shoots full width 8K video, utilizes Canon's new RF lens mount, and also has next generation Dual Pixel autofocus.

TECHNICAL SPECIFICATIONS:

Introducing NA-R5

The Canon EOS R5 Camera

The Canon EOS R5is the latest in Canon's full-frame mirrorless camera lineup which has gained unprecedented demand. It features the RF lens mount which hasthe same large 54mm diameter but the ability to have larger rear lens elements that are closer to the sensor gives increased corner and outer edge sharpness.

The R5 uses an all new 45MP CMOS sensor with in-body image stabilization which can reduce shake by up to 8 stops. The camera's Dual Pixel autofocus system uses 1053 autofocus points across the entire frame. It is also capable of recording 8K video at 24p or 30p and 4K at up to 120p.

The EOS R5 can also use the large EF-mount lens lineup via three optional adapters, a simple EF to R adapter, one which supports the customizable control ring and another that features a drop-in filter mount.

Key Camera Specifications

• 45MP full-frame Dual Pixel CMOS sensor
• 8K Video, with option for RAW or 10-bit 4:2:2 C-log or HDR PQ
• Up to 4K/120p, or oversampled 4K up to 30p
• 100% coverage Dual Pixel II AF system
• 12 fps / 20 fps burst (mechanical / electronic shutter)
• 5.76M-dot OLED EVF with 120fps max refresh rate
• 3.2" 2.1M-dot fully articulating touchscreen
• 10-bit HDR photos in HEIF format
• 1x CFExpress slot, 1x UHS-II SD slot
• Weather sealing

The Nauticam NA-R5 Underwater Housing for the Canon EOS R Camera

The NA-R5 underwater housing follows suit withNauticam's drive for innovation. Both the Canon EOS R5 and EOS R present shooters with the ability to use both the available legacy EF lenses via an adapter in addition to their native RF optics. To support both the legacy and native lenses, Nauticam has integrated the NA-R5 into the N120 port system. Canon's EF to RF mount adapters can be affixed to the camera before insertion into the housing. When using the EOS R5 inside the housing with the adapter and a supported EF lens, the port and extension ring arrangement will be identical to the same setup on a Nauticam Canon N120 DSLR. As the RF lens lineup emerges, dedicated port and extension ring combinations will be listed on the Port Chart. Two lens release buttons, one for RF and one for EF lenses used with the optional Canon adapter, are located on the front of the housing to make lens removal through the port opening simple.

Mission Control

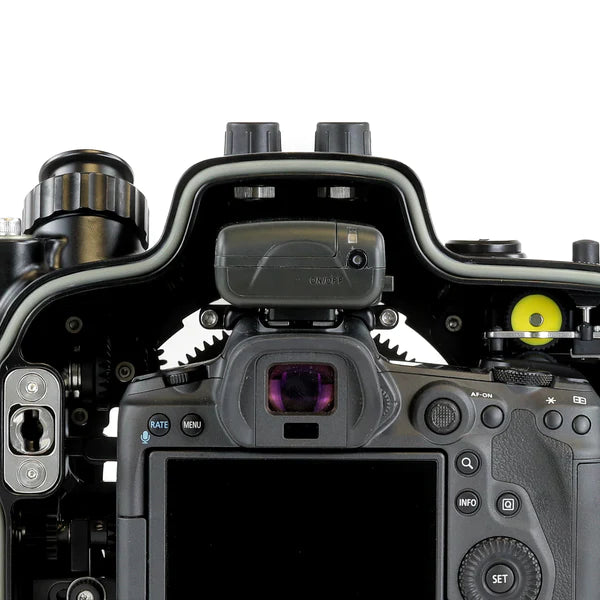

Nauticam engineers areobsessedwith getting the underwater image maker unfettered access to all the necessary controls, with as many within easy reach of the ergonomic rubberized handles. This Mission Control philosophy extends to the NA-R5 where a dual thumb lever and dual sub-lever are placed by the right handle. The upper thumb lever activates the "AF-On" and the lower the "Q" buttons while the sub-lever corresponds to the "M-Fn" and "Record" buttons. Near the left handle is a thumb lever for "Playback" as well as a dedicated switch to change from using LCD to the EVF.

Large knurled and rubberized control dials access the camera's "main" and "sub" command dials. The two-stage trigger allows for smooth focus and firing activation. Additional buttons for "Menu", "Focus Point Selection" and others are also easily reached from the handles.

An additional control wheel is located on the left side of the housing and will interface with the control ring on the supported EF to EOS R Mount Adapter with Control Ring using the optional gear (PN 19561).

Flash Triggering

Flash triggering is achieved via one of two optional Flash Triggers, a manual LED trigger (PN 26301) or a TTL Flash Trigger (PN 26322) that use the built-in fiber optic bulkheads with optional fiber-optic cables to trigger supported strobes. For controlling strobes that do not support fiber optic flash triggering, a variety of legacy hot-shoe flash control bulkheads are available.

Features

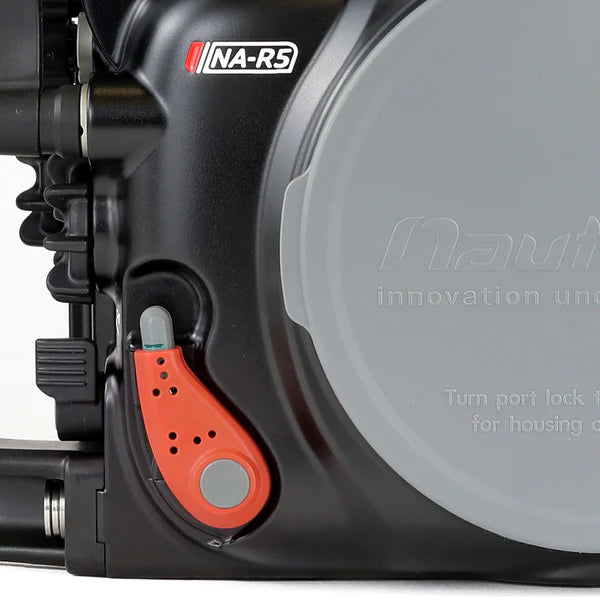

Patented Port Locking Lever

The NA-EOS-R features Nauticam's signature port locking system. Ports can be easily installed and securely locked in place. The NA-EOS-R will support both RF and EF mount lenses through the N120 Port System.

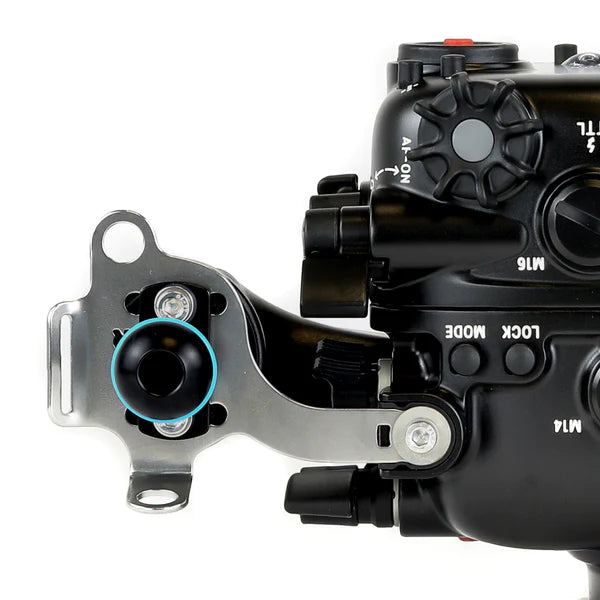

Stainless Steel Handle Brackets

Stiffening handle brackets are included with the housing. These brackets eliminate any flex or wobble when using big strobes, and provide multiple attachment points for lanyards or other accessories.

Flash Triggering

Built-in fiber optic bulkheads work in conjunction with one of two optional flash triggers. The optional TTL flash trigger can be turned on and off from outside the housing allowing easy switching between ambient and artificial lighting for the scene.

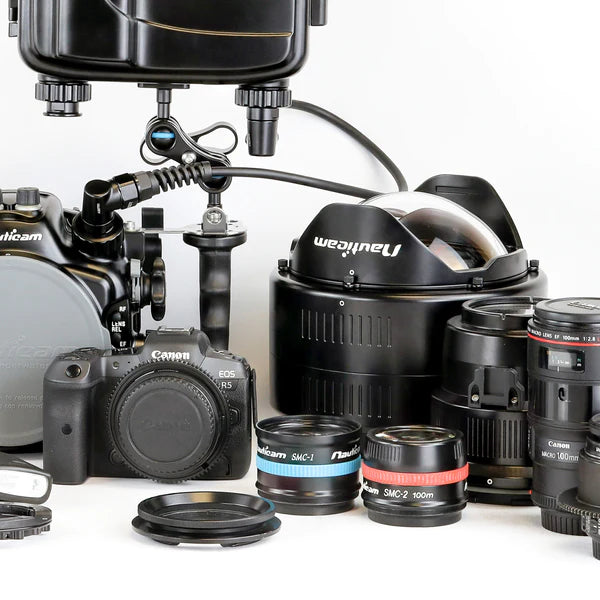

Premium Professional Optics

The NA-R5 is designed around the N120 Port System and when used with supported lenses allows for the use of a variety of Nauticam water contact optics such as the WACP, as well as the SMC-1 and SMC-2 super macro converters.

Integrated Vacuum Check and Leak Detection System

The Nauticam vacuum check and leak detectionelectronicsare shipped with the NA-R5 as standard equipment. Combined with an accessory vacuum valve this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

Video

RESOURCES

Manual Download PDF

In The Box

• NA-R5 Housing
• 90121 Spare main o-ring, lubricant and removal tool
• 2x Optical bulkhead caps
• 2x Handles with mounting balls
• Set of allen keys
• CR2032 battery for leak detector
• Padded housing bag and shoulder strap

Accessories

• 25624 M14 Vacuum Valve II (Pushbutton Release)
• 25625 M16 Vacuum Valve II (Pushbutton Release)
• 32211 Nauticam Full Frame Straight Viewfinder 32°/ 1:1

• 32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1

• 32213 Nauticam Full Frame Angle Viewinder 32°/ 1:1

• 32214 Nauticam Full Frame Angle Viewinder 40°/ 0.8:1

• 32201 Nauticam 180˚ straight viewfinder
• 32203 Nauticam 45˚ viewfinder
• 26301 Manual Flash Trigger for Canon
• 26321 TTL Flash Trigger for Canon
• 28130 Hand Strap for 28113
• 26216 Universal Optical Fiber Cable
• 25081 M24-M16 Step Down Adaptor
• 25020 M14 Nikonos 5-pin bulkhead with Canon hotshoe connection
• 19561 Gear for Canon EF-EOS R Control Ring Adaptor
• 26320 Control Kit for Canon Drop-In Filter Mount Adapter EF-EOS R

HDMI Recommended Configurations

For HDMI 2.0 Cable System

• 25086 M24 adaptor for HDMI 2.0 Cable
• 25077 M24D1R205-M28A1R170 HDMI 2.0 Cable (for NA-XT3/R5 to use with Ninja V housing)
• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)

For HDMI 1.4 Cable System

• 25033 Standard HDMI Cable with M16 Thread
• 25081 M24-M16 Step Down Adaptor
• 25076 HDMI (D-D) Cable in 200mm Length for NA-XT2/NA-XH1/NA_A6400

• 17906 NA-502H Housing for SmallHD 502 Monitor
• 17920 NA-502B-H Housing for SmallHD 502 Bright Monitor
• 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2" 4K HDMI Monitor withHDMI 1.4 input
